STC600A/B tower crane
——STC8530(25t/32t)
Release Time:2024-05-14      Author:      Pageviews:2457

Ⅰ、Product Description

1. The short arm length has excellent lifting performance. 30m long arm tip can be suspended 23.5t. and the PC building construction has strong adaptability.

2. The maximum lifting capacity is 25t/32t and the lifting speed is 96m/min, leading the industry.

3. The boom length  reaches to 12 combinations , which is abundant.The length of lifting arm is 30m~85m, 5m variable arm length.

4. The tower body is equipped with 5.7 m square pin rod standard section, and equipped with an inclined ladder, which is safe and convenient.

5. The structural parts are highly interchangeable, the quick-installation large platform, the telescopic wall attachment have a wide range of uses, and the heavy-duty plugs are quick-installation connections for easy installation.

6. The driver's cabin adopts integrated space capsule designing, operating room&electrical room&washing room layout, dual independent brand air conditioner, safe and comfortable.

7. The platform, ladders and railings are all galvanized, and the walking platform is designed to be anti-slip and anti-corrosion and rust-proof during its life cycle.

8. It adopts full frequency conversion speed regulation, instantaneous response to start and stop, anti-sway throughout the process, and the electronic control system intelligently detects and protects the anti-sliding hook. It can follow the load and speed, and intelligently improves efficiency.

9. Millimeter-level ant-speed positioning, minimum 3mm/s, instant response to inching, and good control performance.

10. Multi-functional intelligent security monitoring system can raise lifting  to fixed position by using display screen  ; with long-distance wireless operation function (within 300m).

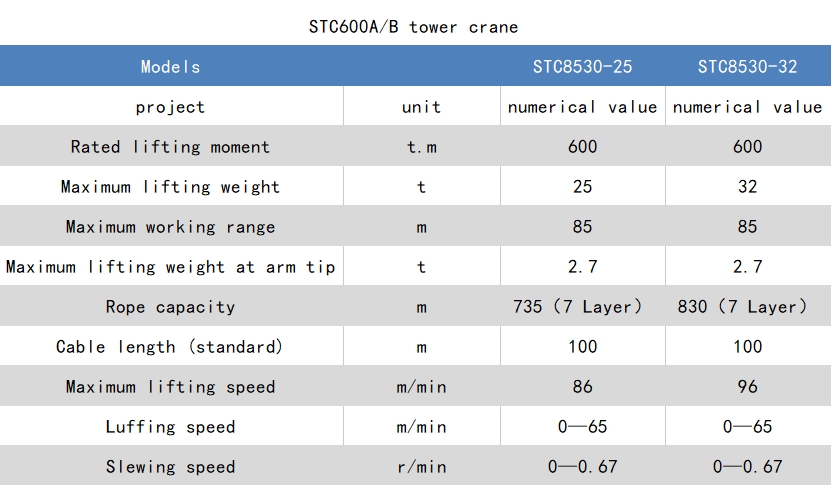

Ⅱ、Product parameters

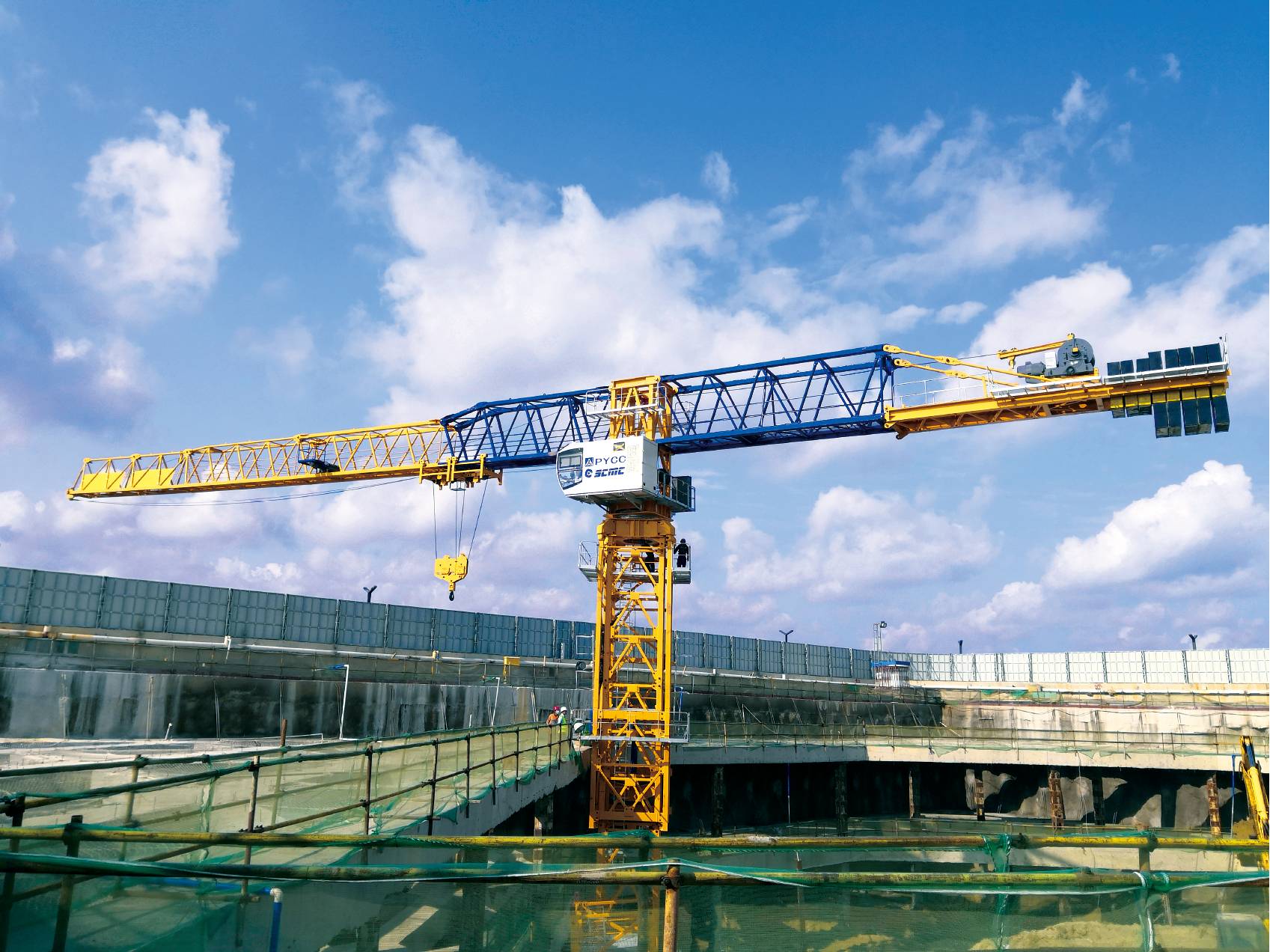

Ⅲ、Construction Case
